2000 MAZDA MIATA

MOTORVAULT PROVENANCE

Year: 2000
Make: Mazda
Model: Miata
VIN: JM1NB3530Y0147208
Miles: 192,936
Transmission: Manual
Drivetrain: RWD
Exterior: Blue (Wrap)
Interior: Stripped track interior with roll structure
Title: No Title – Racecar Only

OVERVIEW

2000 NB Mazda Miata configured for track use. The car has been converted from a standard road car into a stripped chassis with fixed seating, harnesses, and integrated roll structure.

Exterior is finished in a blue vinyl wrap with a white removable hardtop. Interior has been fully stripped and repainted. Current configuration reflects track day or grassroots competition use.

‍ ‍

ENGINE AND MANAGEMENT

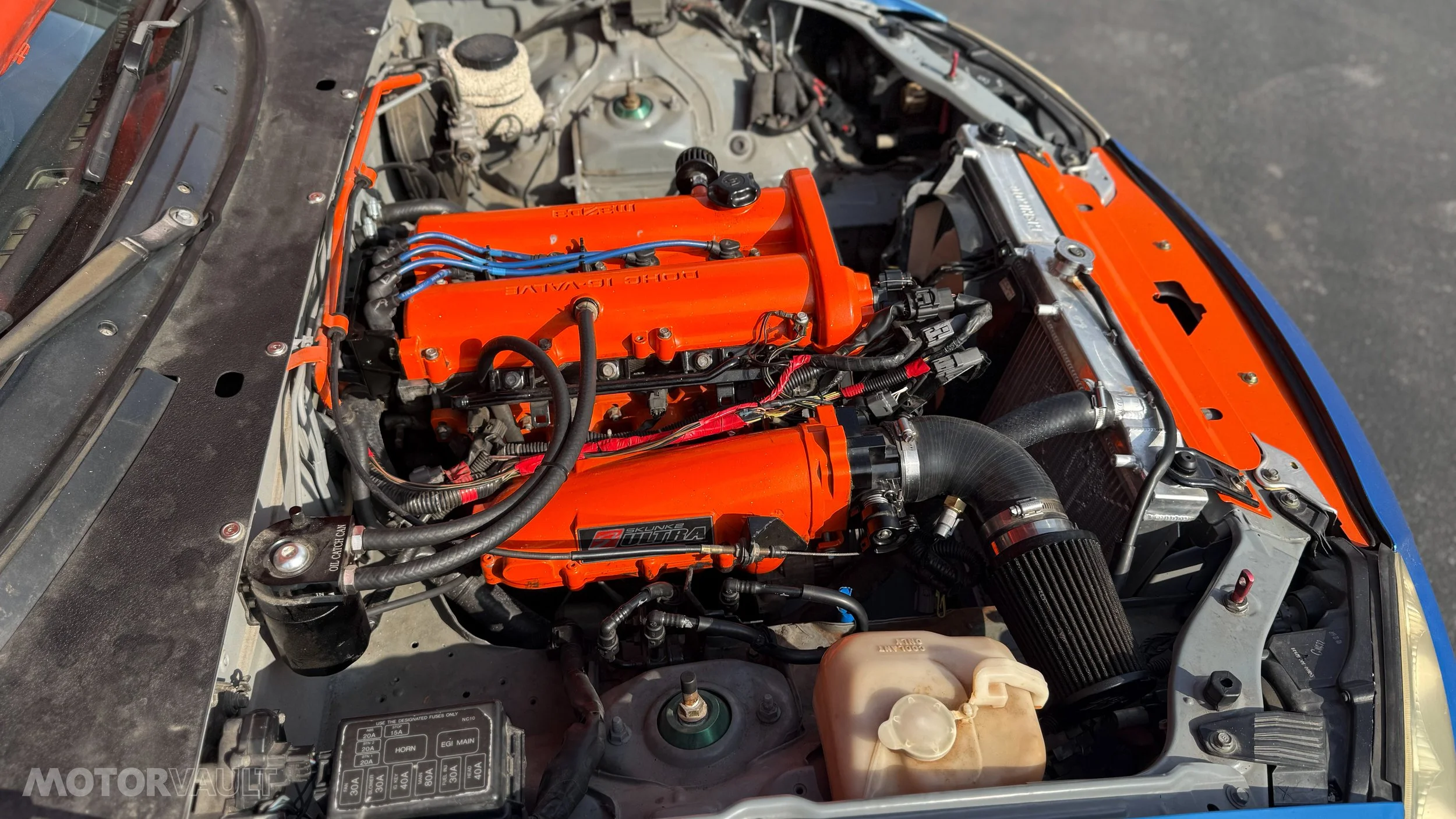

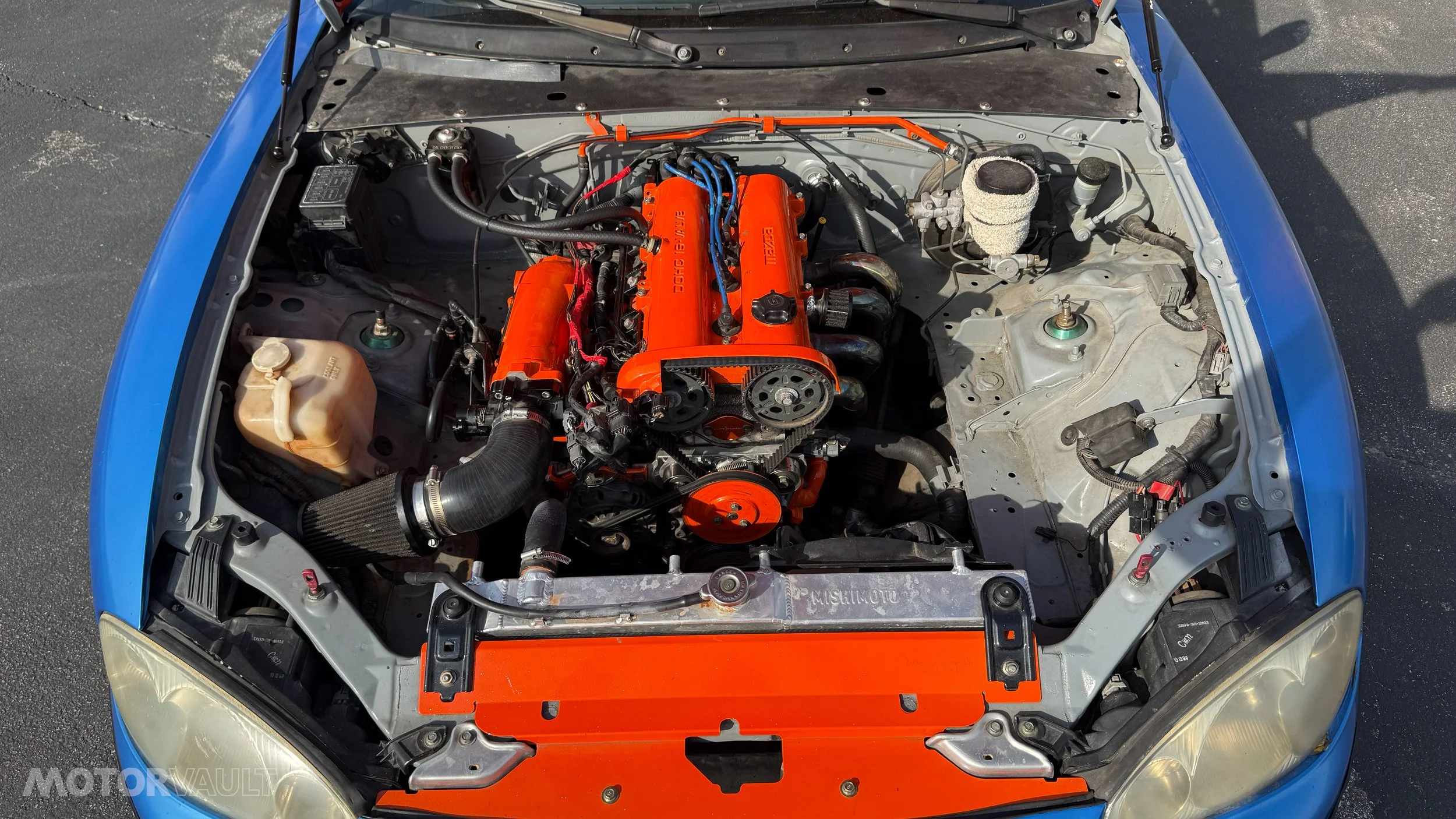

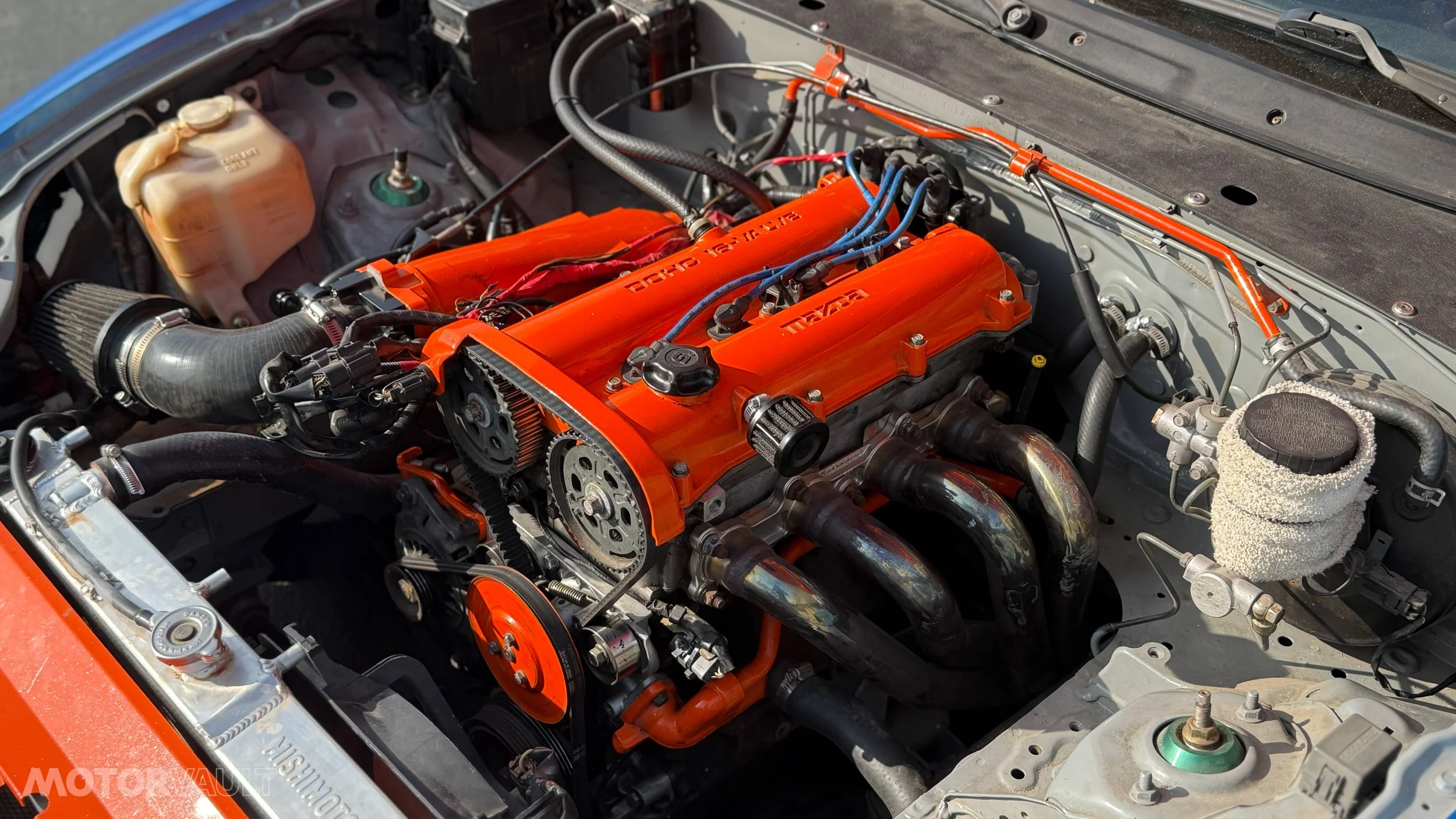

Mazda BP 1.8L inline four cylinder engine
Manual transmission
Rear wheel drive

Aftermarket engine management via Megasquirt ECU
Aftermarket gauge system installed

RECENT SERVICE AND DIAGNOSTICS

Service performed by Winning Formula Inc.

Invoice dated 08/27/2025 at 192,863 miles documents diagnostic work related to a no start condition and cam/crank synchronization.

Work performed includes:

Adjustment of crank position sensor air gap
Reconnection of TPS and ECU during diagnostic process
Verification of tachometer function
Diagnosis of inoperative AEM gauge
Replacement of blown 10 amp fuse restoring gauge function
Securing of wiring behind center console
Securing of fuse panel and dimmer switch under driver side dash
ECU monitoring through Megasquirt

Follow up work includes:

Installation of factory crank position sensor
Replacement of MAT sensor
Idle adjustment
Clearing of stored faults
Road testing with ECU monitoring

Technician notes indicate intermittent cam/crank sync loss during cold idle below approximately 1,000 rpm. Condition resolves above that range and was not noted under load.

Follow up invoice total documented at $1,802.70

ADDITIONAL MAINTENANCE (PER OWNER)

New spark plugs
New coil pack
New cam position sensor
New crank position sensor
New water pump
Cooling system serviced
New fuses installed

CHASSIS AND EQUIPMENT

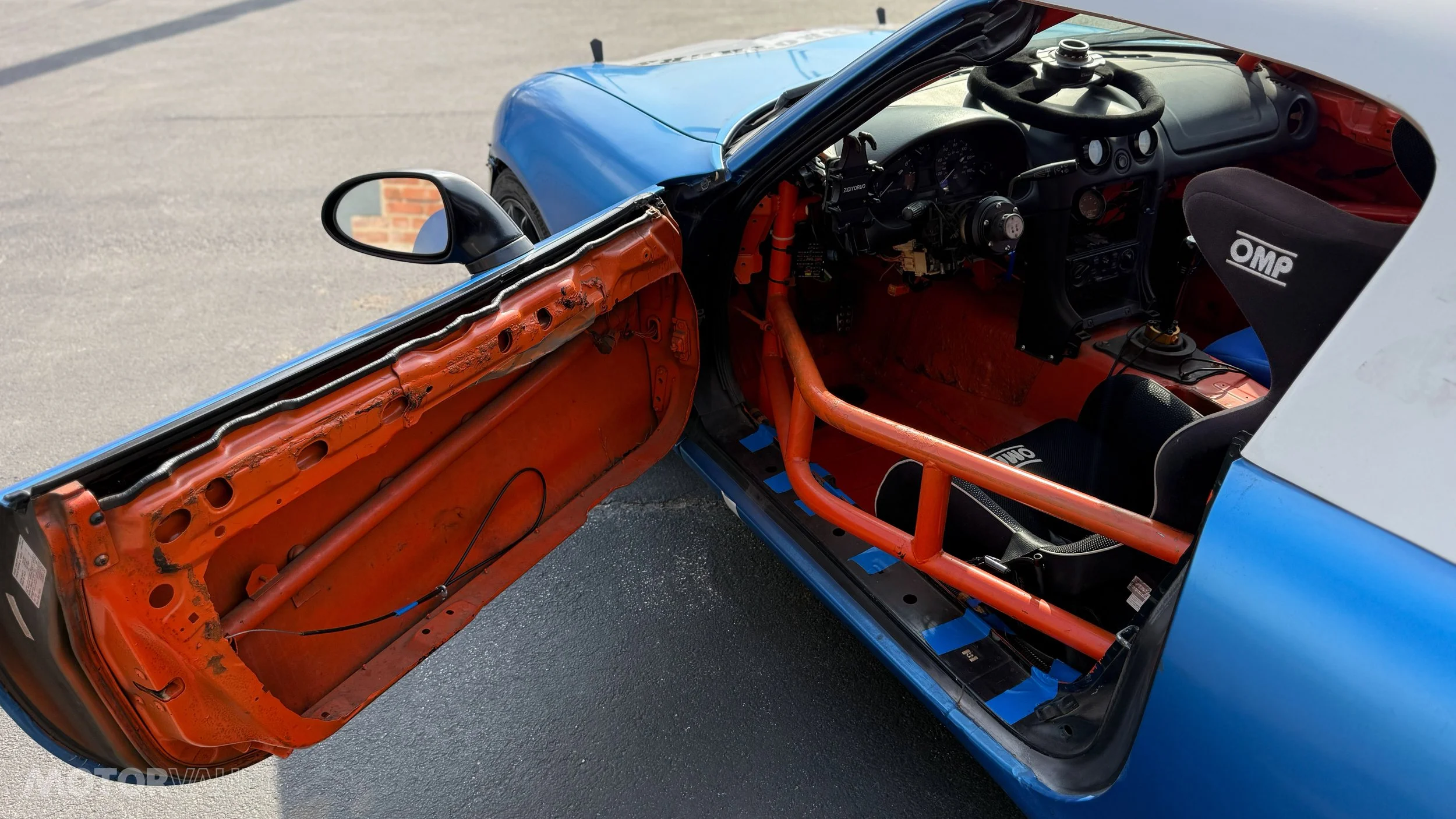

Full roll structure finished in orange
Aftermarket front aero
Rear wing installed
Lowered suspension setup
Aftermarket wheels with performance tires

Detailed suspension and brake specifications not provided

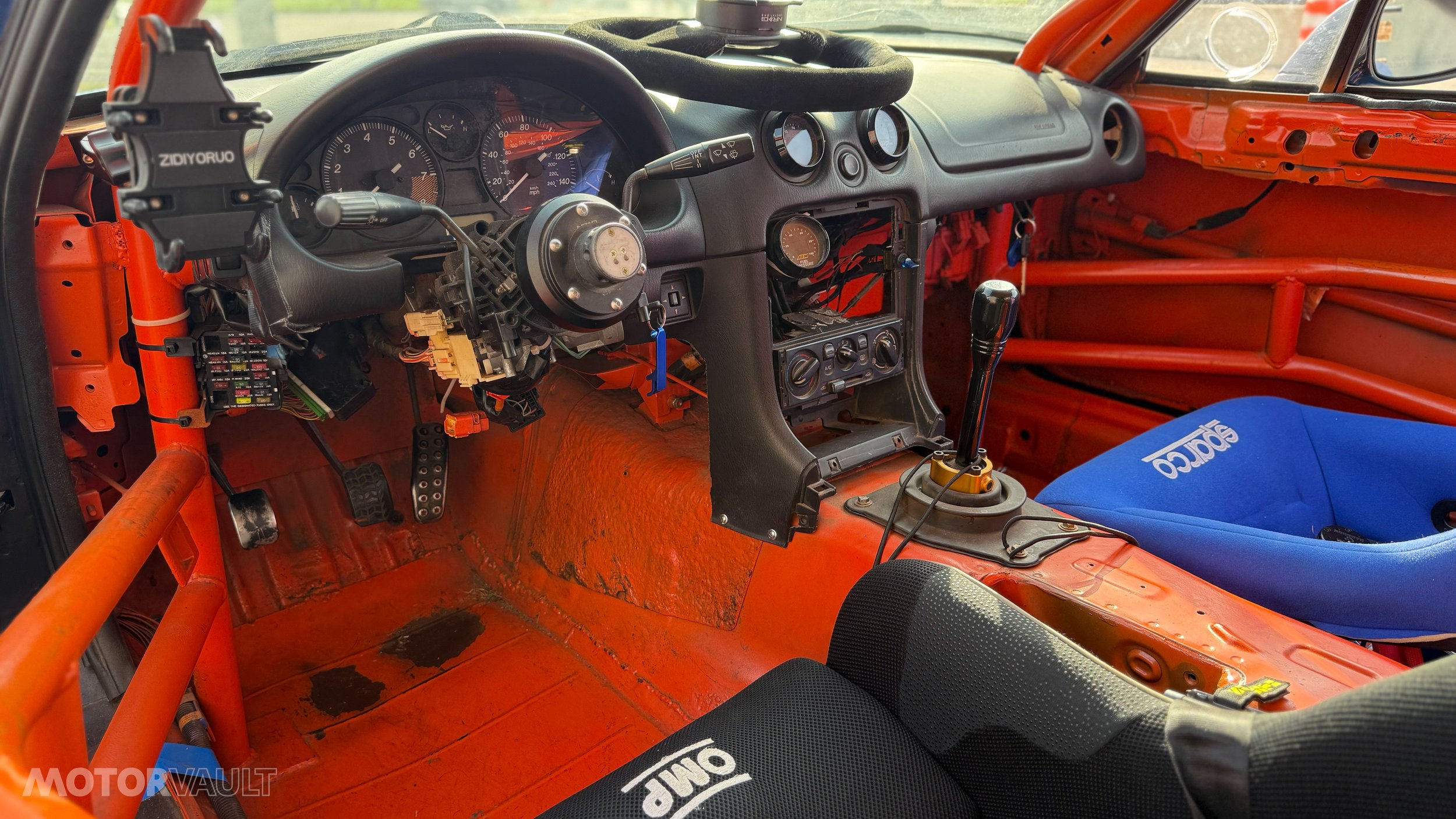

INTERIOR AND SAFETY

Stripped interior with painted chassis
OMP driver seat

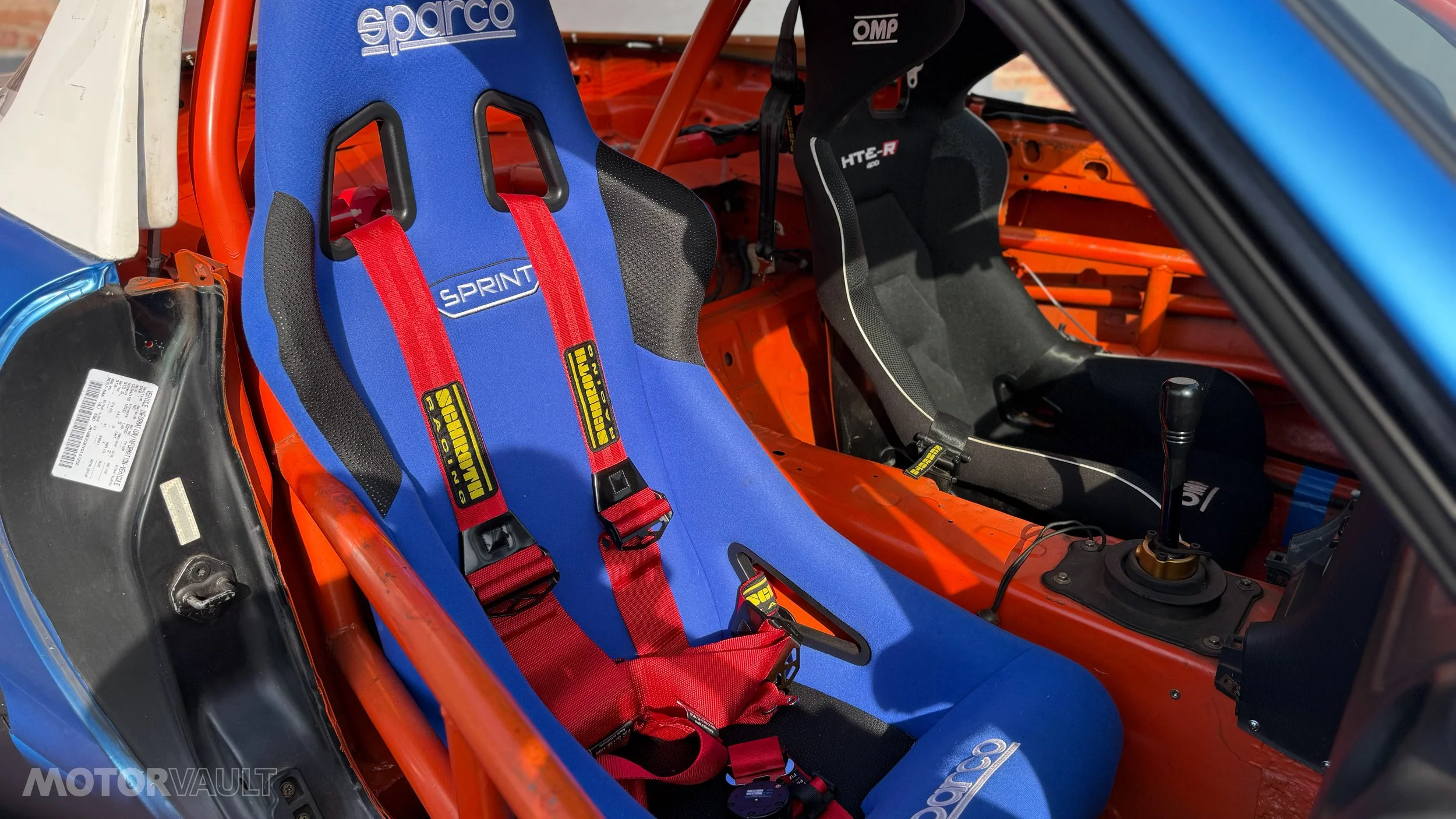

New Sparco Sprint passenger seat

Sparco components supported by receipt totaling approximately $984 including seat, mounts, and hardware

Multi point harnesses installed
Aftermarket steering wheel with quick release hub
Simplified dash layout

EXTERIOR

Blue vinyl wrap
White removable hardtop included
Visible wear consistent with use

CONDITION SUMMARY

Track configured NB Miata with documented diagnostic work and recent maintenance. Mechanical systems have received recent service. Interior and chassis configuration are complete for intended use.

NOTES

No title
Not intended for street use

Odometer reads 192,936 miles
Service invoice documents 192,863 miles on 08/27/2025
